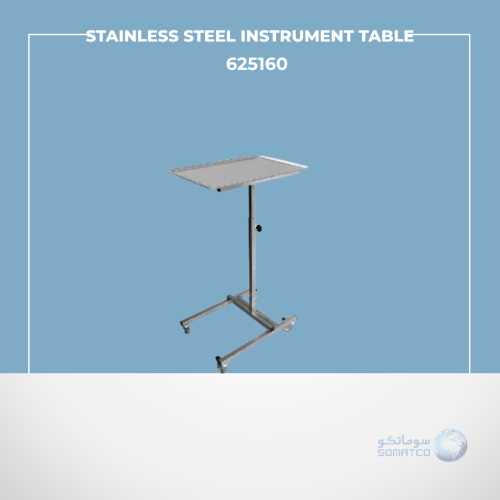

Operating Table / Trolley For Animal

Suitable for using as an instrument stand during surgical procedures
→ Stainless steel construction
→ Four lockable castors
→ Adjustable height: 90 to 132 cm
→ Dimensions: 60 x 40 cm (L x W)

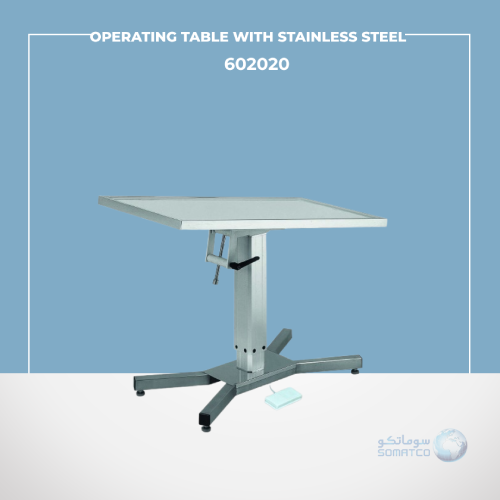

→ Stainless steel X-base with 4 individually adjustable feet
→ X-base provides best possible legroom and stability
→ Allows good working posture whether sitting on a stool or standing due to X-base design
→ Shapely, slim lift column made of anodized aluminium
→ Self contained, maintenance free, electric / hydraulic lift mechanism
→ Height adjustable from 72 to 112 cm
→ Unidirectional 80° tilt mechanism, one hand control
→ Stainless steel top with rounded corners, anti-drip edges and drain hole, 130 cm long, 50 / 60 cm wide
→ Easy to clean and disinfect

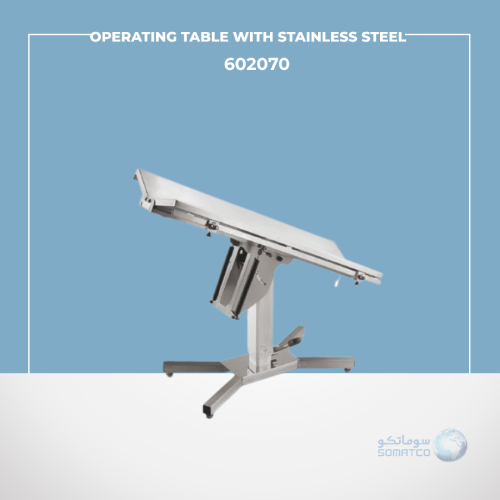

→ The V-Top Table is the choice for procedures requiring precise animal positioning.
→ with stainless steel V Top, 140 x 50cm and 2 side rails
→ gas spring supported V adjustment from 0 to 90°
→ one hand adjustment
→ with tilt mechanism one direction approx. 75° degrees
→ removable drain channel – easy to clean
→ X-form base for excellent stability
→ self-contained, maintenance free lift mechanism
→ height adjustable from 72 to 112cm
→ provides easy and safe positioning of the patient

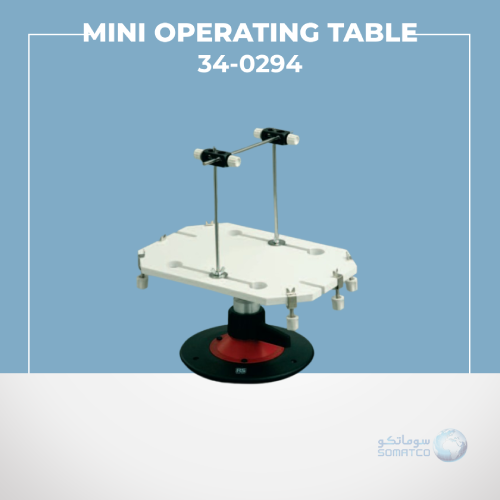

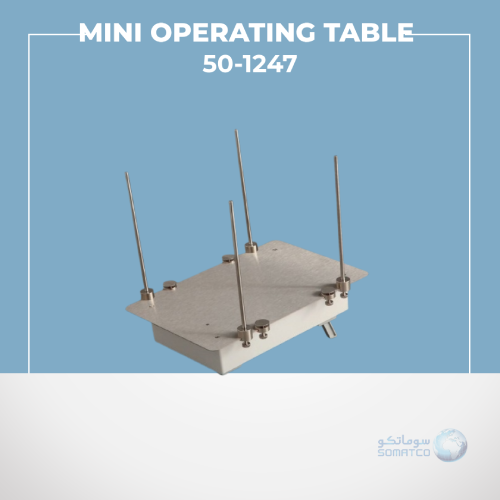

Designed specifically for operative work in small animals, the IMS Mini-OP Table tilts in any direction to ensure the patient is always presented to the best advantage. A choice of two tops is available. One contains slots to accommodate uprights so that additional equipment can be used.

The table top stands 150 mm above the base and can be height adjusted for user comfort. It is manufactured in lightweight, non-absorbent PVC, which retains heat and therefore helps to maintain body temperature. The metal base has non-slip feet.

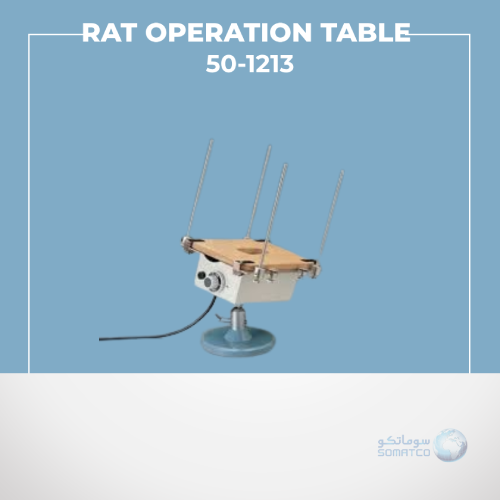

This heated rodent operating table is a sturdy piece of equipment that will stand up to daily use. The entire top portion of the table is mounted on a heavy base by means of a sturdy ball and socket joint. The socket allows the table top to be swiveled and tilted into any convenient position and then locked securely in place.

→ Available as stand alone table or as complete homeothermic heated table
→ Uniformly heated with temperature regulation

Designed specifically for operative work in small animals, the IMS Mini-OP Table tilts in any direction to ensure the patient is always presented to the best advantage. A choice of two tops is available. One contains slots to accommodate uprights so that additional equipment can be used.

The table top stands 150 mm above the base and can be height adjusted for user comfort. It is manufactured in lightweight, non-absorbent PVC, which retains heat and therefore helps to maintain body temperature. The metal base has non-slip feet.

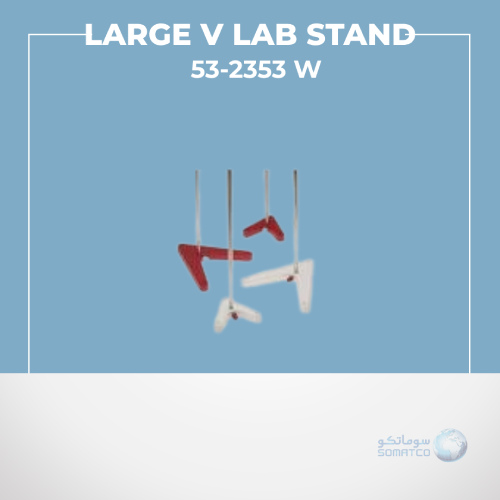

→ An ingenious, flexible, totally integrated group of clamps, connectors and lattices that meet most laboratory requirements.
→ Precision injection molded nylon with 30% glass fiber reinforcement provides enormous strength at a great saving in weight.
→ There is positively no corrosion possible.
→ This material is perfect for laboratory use since it has the very high melting point of 221°C and good resistance to chemicals, particularly salt solutions and most solvents. In addition, since the vivid colors are an integral part of the product, there is no paint, plating or coating that can fail in use.
→ Select R for red body with white thumb screws and W for white body with red thumb screws.

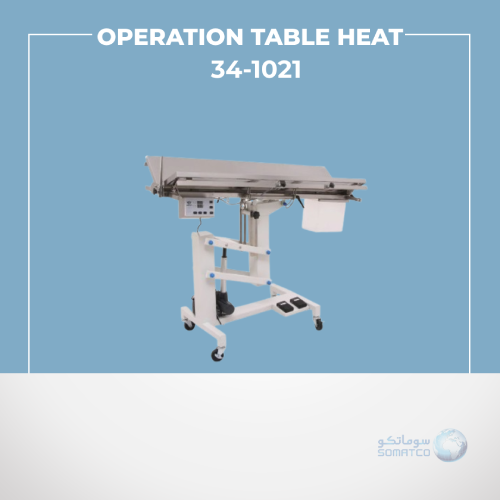

The Harvard Apparatus large animal operating tables can lift a weight of up to 150 kg (330 lbs) from 490 mm (19.3 in), up to a height of 970 mm (38.2 in). This minimizes operator lifting injuries within a veterinary or pre-clinical operating theatre environment. These tables are available in heated and non heated options. All Tables measure 1,200 x 600 mm (47.2 x 23.6 in) . All table surfaces are made from the finest quality AISI-316 stainless steel. Other table surfaces are available, including rubber and laminate. Each table comes with locking castors and remote handheld operating device.

All heated tables come with power sockets to provide a power source for other equipment, and a digital heater controller to control the table surface temperature

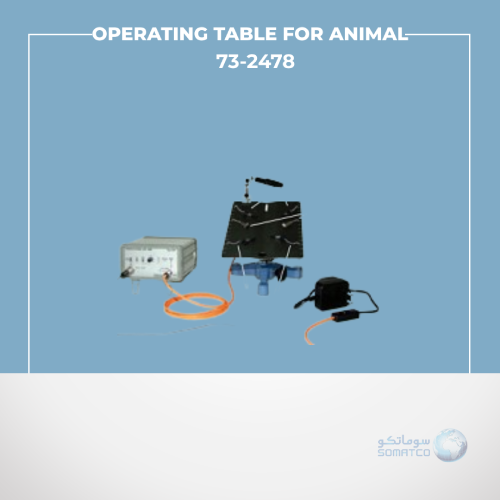

→ For general surgical work on small animals
→ Six different version available:
– Tripod base
– Flat angled base
– Non-heated
– Fixed temperature control heated
– Homeothermic temperature control heated
→ Includes 4 paw holders
→ Capable of receiving thorax retractors and mounting ball joint holders

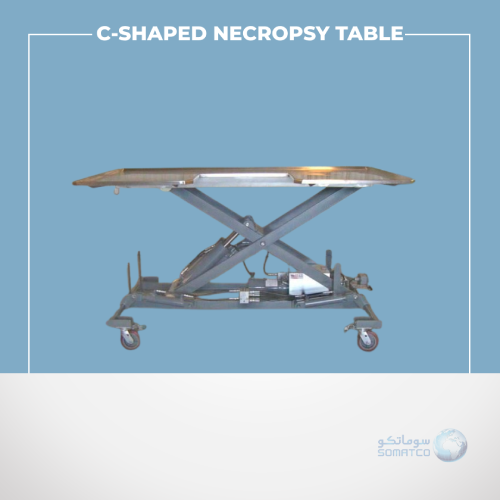

The C-Shaped Necropsy Table is fabricated completely out of stainless steel. The top is equipped with a cutout area formed in the center of one long side to allow for closer access to the animal during necropsy. It also has one drain hole and a raised edge to control fluid drainage. The table has scissor-action lift design and is equipped with 2-way tilt capability. The table is completely mobile via casters and can easily be placed in a stationary position during necropsy procedures by retraction of the casters. It is available in the following sizes:

→ 48″ x 84″ with 12″ x 24″ formed cutout
→ 48″ x 96″ with 12″ x 24″ formed cutout
→ 60″ x 96″ with 18″ x 24″ formed cutout
→ 60″ x 108″ with 20″ x 30″ formed cutout

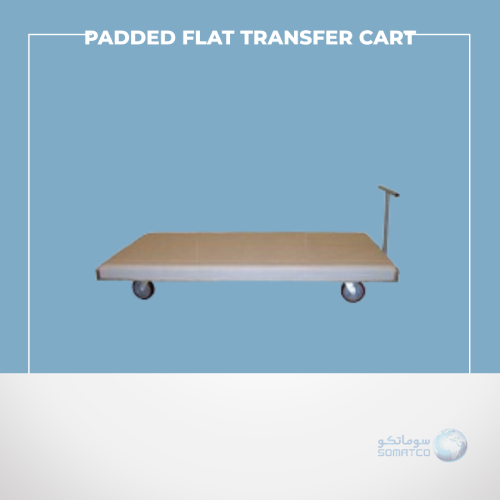

The Shank’s® Padded Flat Transfer Cart has been designed to transport a sedated large animal. Th e cart is modeled aft er the design of the padded top of the Shank’s Floor Model Surgery Table. Th e cart can be manufactured in various sizes depending on the specifi c needs of the customer. Th e cart is completely mobile within a clinic setting, and is at a fi xed height of approximately 15”. A removable T-handle is included to aid in movement of the cart. Th e cart can be fabricated without affi xed padding as a customization.

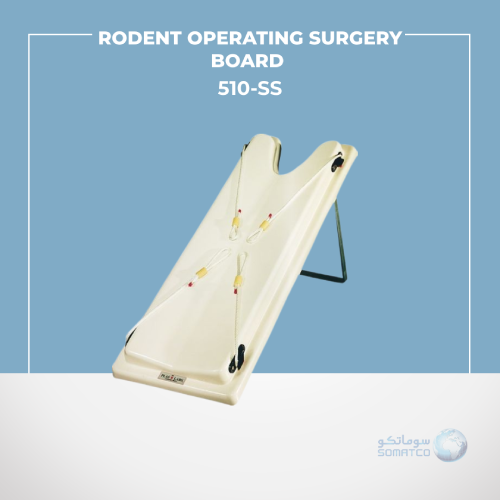

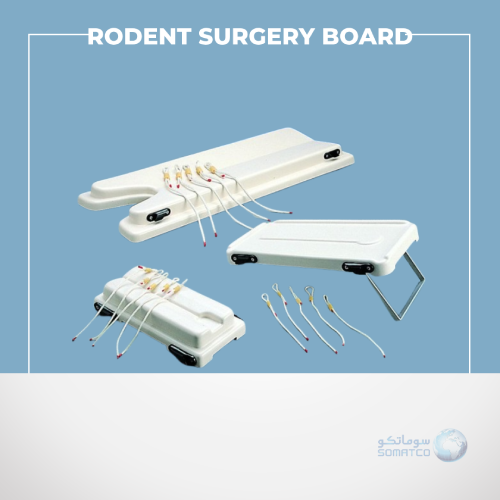

These one-piece molded boards hold rodents and other small animals during surgery. They provide excellent access to the entire length of the animal. A quick-release system of restraint cords and locking cleats quickly and easily attach the animal to the Board. Plastic Small Rodent Operating Board, 27.9 x 11.4 cm (11 x 4-1/2 in), Up to 125 g, 20.3 cm (8 in) Animal Length

→ Formed, one-piece construction for long service life and durability.
→ Center depressed slope for fast positioning of animal.
→ Unique, fast acting tie down cam cleats.
→ White, high temperature plastic and nylon components.
→ Lightweight and easily portable.
→ Uprights adjustable to elevate board for special positioning .

Note : Please mention the product “SOM CODE” while making request for quotation and send it to *****@somatco.com
