Breathing relaxation training is carried out with the aid of a bar, the length of which varies with the subject’s breathing movements. Abdominal and / or chest breathing is measured by means of a breathing belt or of a system of two such straps. The program supplies information about the client’s pattern of breathing. The aim of training is to develop a habit of relaxed abdominal breathing.

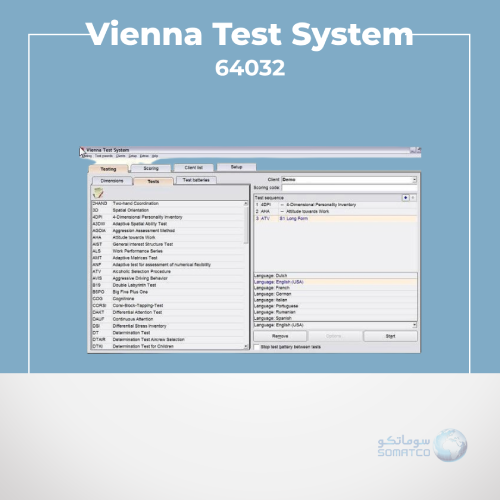

The Schuhfried VTS enables computer-assisted application of a large number of highly diverse psycho-diagnostic tests and measuring procedures. In developing the system much emphasis was placed on transparent structure and largely uniform design. It is therefore simple to operate and easy to understand and does not require any special computer skills.=

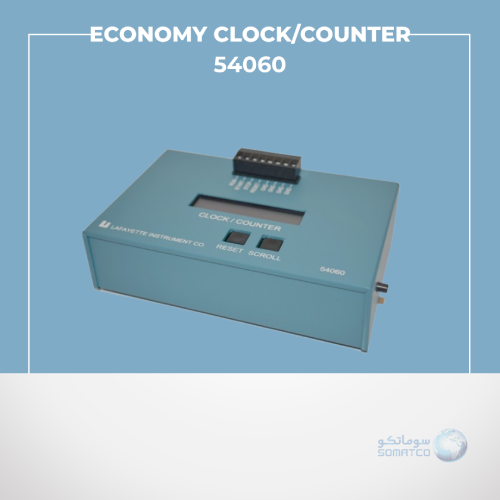

The economy clock/counter is a timing device that is capable of accurately recording times down to the millisecond. This device is powered by a single 1.5 volt AA battery, and a small microprcessor is employed to provide all the operational needs of this device. All of the switch contacts can be confi gured for Normally Open or Normally Closed contacts, adding versatility to the device.

SOM CODE : D221/104
MODEL : 73203
COMPANY : LAFAYETTE, U.S.A.

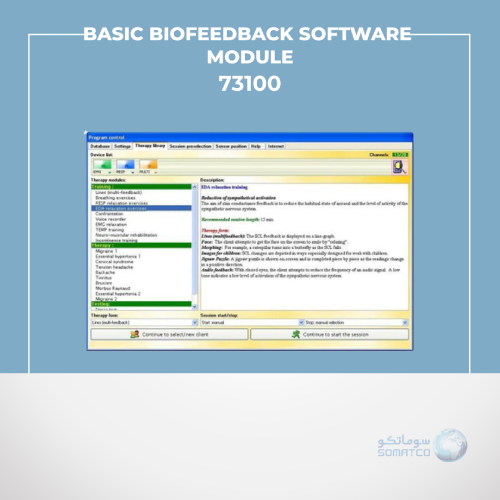

Biofeedback is ready for use immediately upon installation

It is no longer necessary to make an initial connection for the issue of PIN codes and setting up of COM ports. The blue pyramid is no longer required and will no longer be supplied. Biofeedback can be used as soon as the hardware and software are installed.

It is now only necessary to use a USB device
Previously operation required both a Bluetooth dongle and a license dongle

SOM CODE : D221/105
MODEL : 73205
COMPANY : LAFAYETTE, U.S.A.
Biofeedback Module Charge

AC charging and storage module for all Biofeedback modules. Comes with a universal AC mains plug adapter.
This unit will charge up to 4 of the Biofeedback modules and can be used as a storage holder for the modules.

AC input: 110V to 240V, 50 to 60Hz, 250mA
DC output: 3.7V, 530mA

SOM CODE : D221/106
MODEL : 73200
COMPANY : LAFAYETTE, U.S.A.

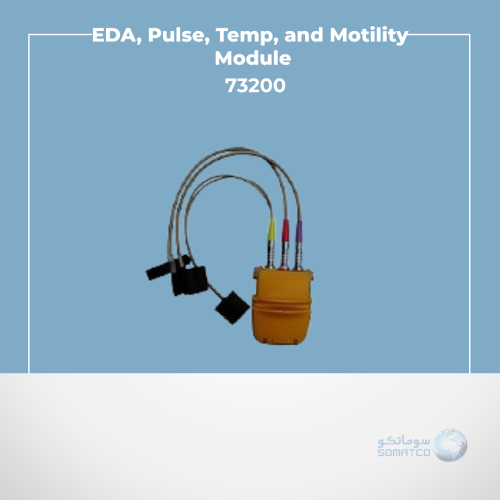

EDA, Pulse, Temp, and Motility Module

Bluetooth Module for sensing Electrodermal Activity (EDA), Pulse Frequency, Temperature, and Motility.

EDA (skin conductance)
→ Range: 0 to 100 micro-siemens
→ Resolution: 0.024 micro-siemens

Pulse
→ Automatic calibration
→ Heart rate: 30 to 200 beats/minute
Temp
→ Range: 10-40° C
→ Accuracy: 0.5° C
→ Resolution: 0.01° C

Motility (3-axis acceleration
→ Sensitivity: 0.006 m/s

SOM CODE : D221/107
MODEL : 73300
COMPANY : LAFAYETTE, U.S.A.

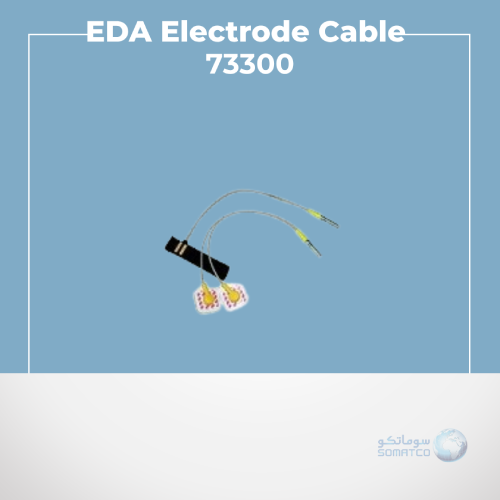

EDA Electrode Cable with Finger Plates

SOM CODE : D221/108
MODEL : 73305
COMPANY : LAFAYETTE, U.S.A.

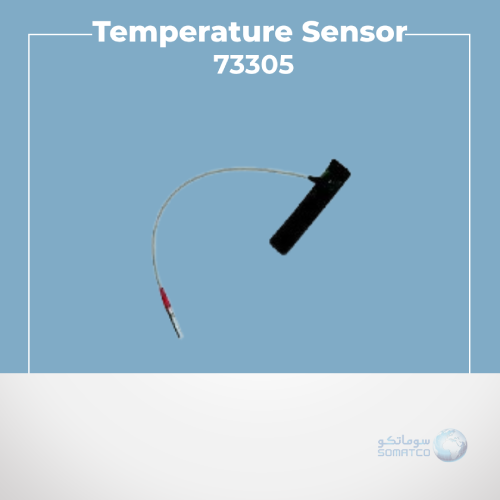

Temperature Sensor

Finger temperature sensor for Biofeedback module 73200

SOM CODE : D221/109
MODEL : 73306
COMPANY : LAFAYETTE, U.S.A.

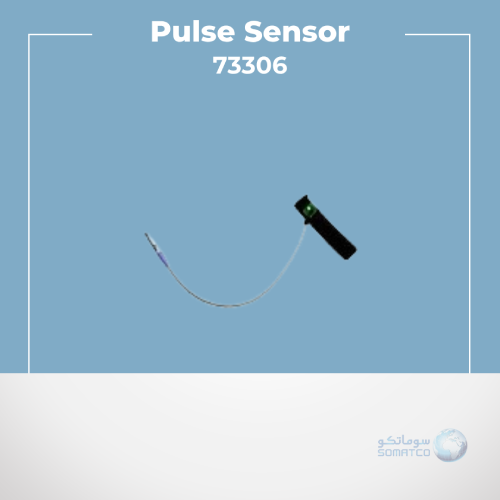

Pulse Sensor

SOM CODE : D221/110
Model : 73202
COMPANY : LAFAYETTE, U.S.A.

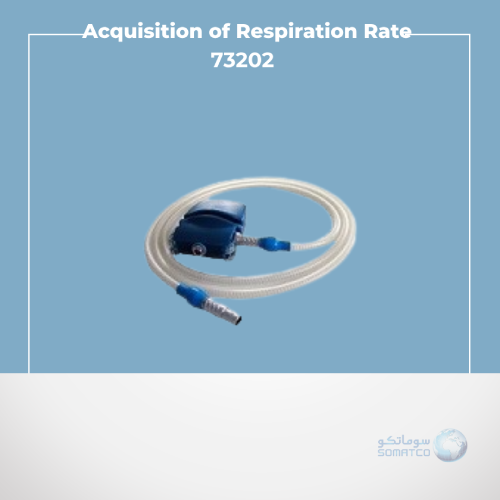

Acquisition of respiration rate and breathing pattern. The module will support a second channel, module 73308 add-on required, to allow a comparison of thoracic and abdominal breathing.

Channels: 2
Resolution: 0.3mm
Range: 20cm

SOM CODE : D221/111 & D221/113
MODEL : 73307
COMPANY : LAFAYETTE, U.S.A.

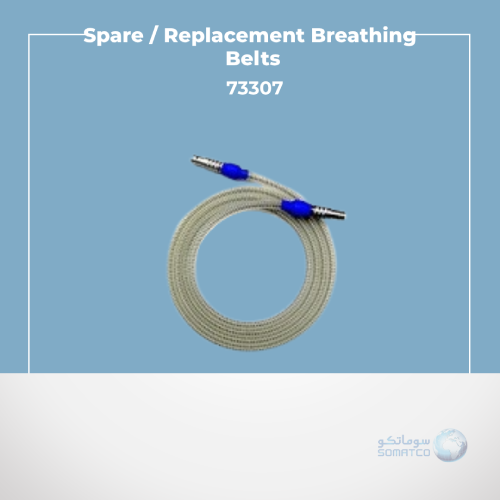

Spare / Replacement Breathing Belts for Biofeedback Modules
Spare or replacement breathing belts for respiration Biofeedback modules 73202 and 73308.

SOM CODE : D221/112
MODEL : 73308
COMPANY : LAFAYETTE, U.S.A.

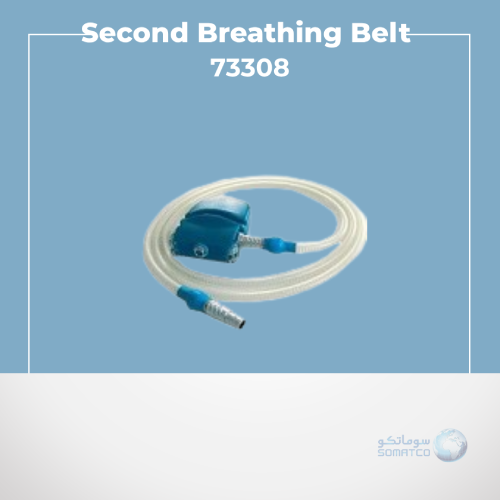

Second Breathing Belt and Module Interconnect
Second respiration module and belt for the Bluetooth® Biofeedback system. Allows for measurement of both Thoracic and Abdominal breathing

SOM CODE : D221/85
MODEL : 64092
COMPANY : LAFAYETTE USA

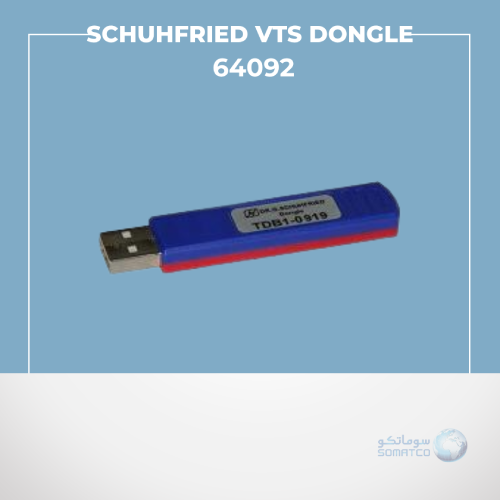

SCHUHFRIED VTS DONGLE

Note : Please mention the product “SOM CODE” while making request for quotation and send it to *****@somatco.com
