Resistance Wires
COMPANY : 3B SCIENTIFIC GERMANY
Metal wires on bobbins, e.g. for experiments to investigate how resistance depends on the material, cross-sectional area and length of the wire.
| SOM CODE | Model | Material | Length Diameter | Catalogue |
|---|---|---|---|---|
| D600/159 | 1000949 | Copper | 100 m 0.3 mm |  |
| D600/950 | 1000950 | Iron | 100 m 0.3 mm | |
| D600/959 | 1000959 | Brass | 50 m 0.3 mm | |
| D600/951 | 1000951 | Nickel | 50 m 0.3 mm | |
| D600/953 | 1000953 | Chrome-Nickel | 100 m 0.3 mm | |
| D600/954 | 1000954 | Chrome-Nickel | 50 m 0.5 mm | |
| D600/955 | 1000955 | Constantan | 100 m 0.2 mm | |
| D600/956 | 1000956 | Constantan | 100 m 0.3 mm | |
| D600/957 | 1000957 | Constantan | 50 m 0.4 mm | |
| D600/958 | 1000958 | Constantan | 50 m 0.5 mm |
COMPANY : 3B SCIENTIFIC GERMANY
| SOM CODE | MODEL | DESCRIPTION | CATALOGUE |
|---|---|---|---|

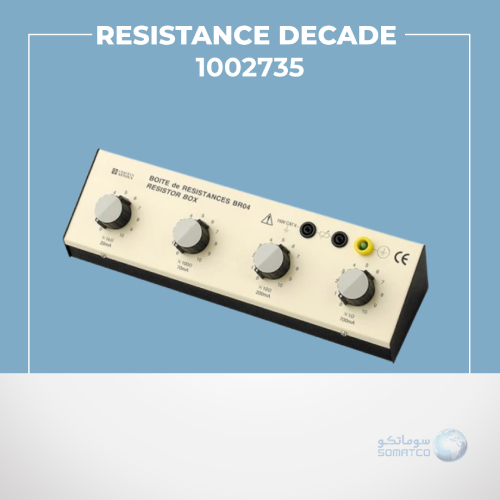

| D600/735 | 1002735 | RESISTANCE DECADE 1-10K(U11185) | |
Four resistance decades in a single housing, can be used individually or in combination, e.g. for setting up a Wheatstone bridge. Can be set using control knob, with decade scale.
→ Output: via 4 mm safety sockets
→ Max. current: 700 mA (1 Ω − 10 Ω),
200 mA (10 Ω − 100 Ω), 70 mA (100 Ω − 1 kΩ), 20 mA (1 kΩ − 10 kΩ)
→ Accuracy: 1%
→ Dimensions: approx. 310x90x80 mm³
→ Weight: approx. 1 kg
COMPANY : 3B SCIENTIFIC GERMANY
| SOM CODE | MODEL | DESCRIPTION | CATALOGUE |
|---|---|---|---|

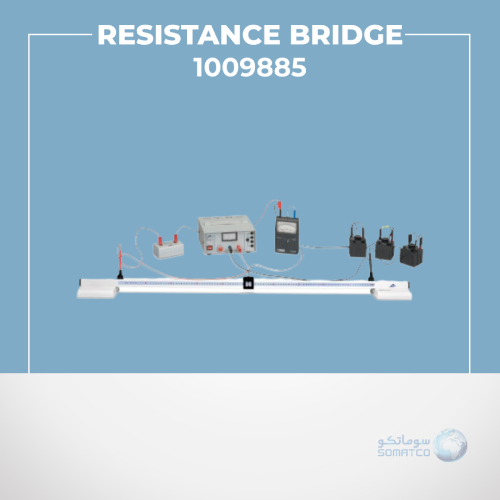

| D600/885 | 1009885 | RESISTANCE BRIDGE(U8551002) | |
Resistance Bridge used to measure resistances in bridge circuits and investigate voltage drops across wires. The device is only suitable for low voltages.
It consists of a rail with a scale mounted at two points and a resistance wire stretched between two connecting sockets. A sliding contact on the resistance wire is used to set the resistance of the resultant two wire sections. A Wheatstone bridge circuit is configured to determine unknown resistances.
WIRES
| SOM CODE | Model | Company | Description |
|---|---|---|---|
| D448/28 | H29024 | FINDEL U.K | PLANCK CONSTANT EXPERIMENT. |
| 2572/5 | P-1550A | ARIHANT INDIA | MANGANIN WIRE DIA 0.90MM 20 SWG 50GM/REEL |
| 2572/3 | EISCO INDIA | RESISTANCE WIRE SET OF COPPER, NICHROME, CONSTAN | |
| 2572/18 | ARIHANT INDIA | RESISTANCE WIRE SET OF COPPER NICHROME | |
| 2572/17 | P-1552A | ARIHANT INDIA | CONSTANTAN/EUREKA WIRE BARE DIA 1.6MM 16SWG 125GM |
| 2572/16 | P-1542H | ARIHANT INDIA | NICHROME WIRE BARE 32 SWG 125GM/REEL |
| 2572/14 | P-1548 | ARIHANT INDIA | COPPER WIRE DOUBLE RAYON W/ COVER 500GM/REEL |
| 2572/13 | P-1546 | ARIHANT INDIA | COPPER WIRE 500GM/REEL |
| 2572/12 | P-1544J | ARIHANT INDIA | COPPER WIRE BARE 36 S.W.G 250GM/REEL |
| 2572/11 | P-1544A | ARIHANT INDIA | COPPER WIRE BARE 18 S.W.G. 500GM/REEL |
Note : Please mention the product “SOM CODE” while making request for quotation and send it to *****@somatco.com
